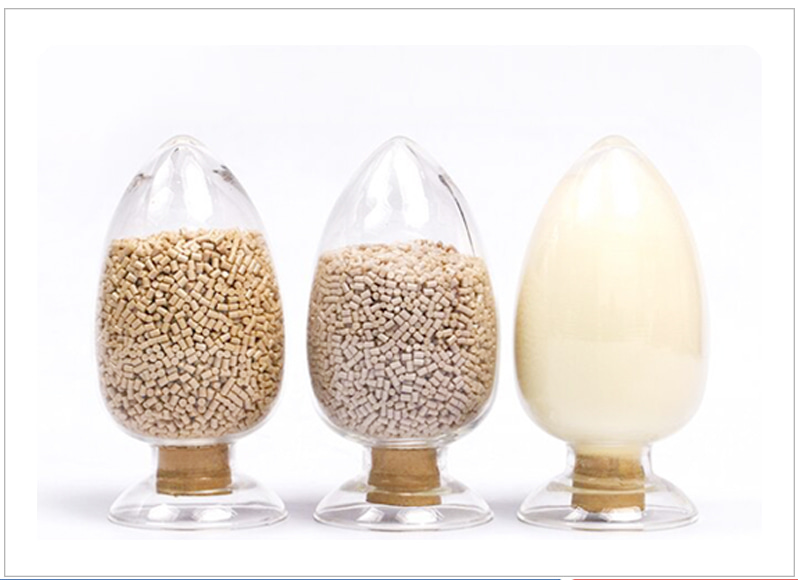

PEEK powder is produced by grinding the coarse powder obtained after PEEK polymerization. Powders with different particle sizes can be produced using different grinding processes. PEEK5600P Fine Powder is a medium melt flow rate grade suitable for processing methods such as compression molding and spray coating.
PEEK Properties
| Test Item | Test Standard or Instrument | Unit | PEEK5600P |
|---|---|---|---|
| Mechanical Properties | |||
| Tensile Strength (23°C) | ISO 527-2/1B/50 | MPa | 95 |
| Tensile Modulus (23°C) | ISO 527-2/1B/51 | GPa | 4.0 |
| Elongation at Break (23°C) | ISO 527-2/1B/50 | % | 25 |
| Flexural Strength (23°C) | ISO 178 | MPa | 169 |
| Flexural Modulus (23°C) | ISO 178 | GPa | 4.2 |
| Compressive Strength (23°C) | ISO 604 | MPa | 125 |
| Charpy Impact Strength (Unnotched) | ISO 179/U | kJ/m2 | No Break |
| Izod Impact Strength (Notched) | ISO 180/A | kJ/m2 | 6 |
| Thermal Properties | |||
| Melting Point | DSC | °C | 343 |
| Heat Deflection Temperature | ISO 75-1/-2 | °C | 155 |
| Continuous Use Temperature | UL 746B | °C | 260 |
| Coefficient of Thermal Expansion | ASTM D696 | ppm K-1 | 46 |
| Flammability Rating | UL 94 | / | V-0 |
| Thermal Conductivity | ISO 22007 | W/(m·K) | 0.28 |
| Electrical Properties | |||
| Dielectric Strength | IEC 60243-1 | kV/mm | 18 |
| Dielectric Constant | IEC 60250 | – | 3.2 |
| Surface Resistivity | IEC 61340 | Ω | 1016 |
| Dissipation Factor | IEC 60251 | – | 0.004 |
| Other Properties | |||
| Color | – | Natural Color | |
| Density | ISO 1183 | g/cm3 | 1.30 |
| Water Absorption (25°C, 24 h) | ISO 62 | % | 0.05 |
| Molding Shrinkage | 3 mm thickness, 170°C, flow direction | % | 1.0 |
| Perpendicular to the flow direction | % | 1.3 | |
| Poisson’s Ratio | ISO 527-2 | 0.4 | |
| Rockwell Hardness | GB/T 3398.2 | HRR | 118 |
| Coefficient of Friction | ASTM D3702 | μ | 0.30–0.35 |
| Melt Flow Index | ISO 1133 | g/10 min | 10 |
